Low Voltage PoE for Power & Optional Data

Supply power and an optional wired internet data connection to your tablet kiosk over standard Ethernet cabling.

Designed for kiosks that are stationed without power outlets nearby, our Low Voltage PoE provides a solution that can easily be installed by anyone. No need to use bulky extension cords or hire an electrician to install a new outlet.

Details

  • IEEE 802.3at-compliant power over ethernet (PoE)
  • Capable of delivering a maximum power output of 25 watts
  • Available power profiles include 5 volts 2.6 amps, 9 volts 1.78 amps, 12 volts 1.34 amps, 15 volts 1.37 amps, or 20 volts 1.15 amps with the correct power profile for the tablet being automatically selected upon connection.
  • Optional support for a wired 10/100 Mbps internet data connection

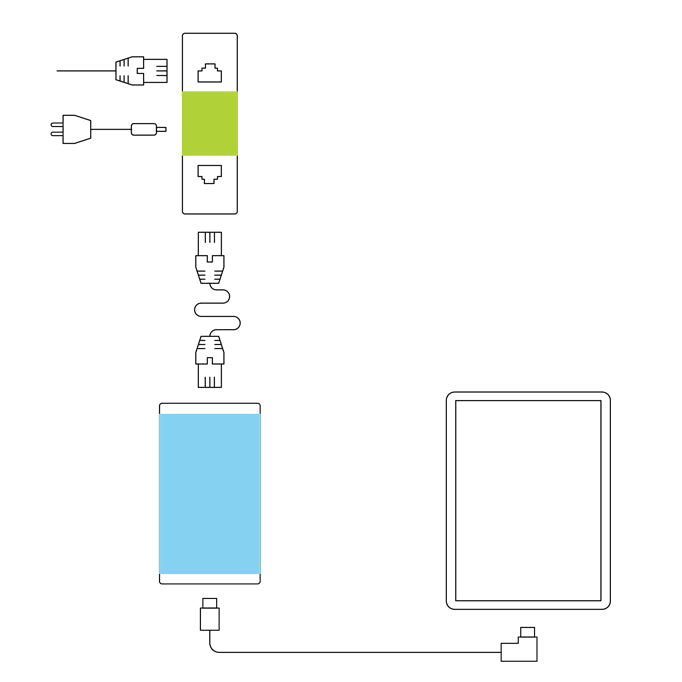

The complete system includes the green Remote Module, a 56 volt 60 watt UL/FCC certified power supply, and the blue Kiosk Module.

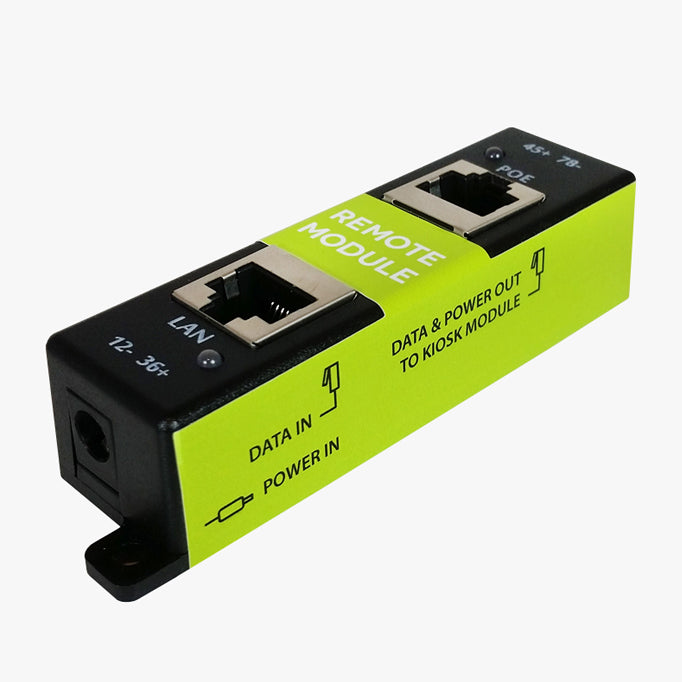

The Remote Module is plugged into any standard 110-volt AC wall outlet using the included power supply and can be connected to any ethernet data source if a wired ethernet connection is desired for the kiosk.

For locations with existing PoE infrastructure, the Kiosk Module is offered separately and can be used with a standard 802.3at PoE switch with a 56-volt power supply in place of the Remote Module. If your existing infrastructure uses the older 802.3af standard, you can connect the Remote Module to update to the 802.3at standard required for use with this system.

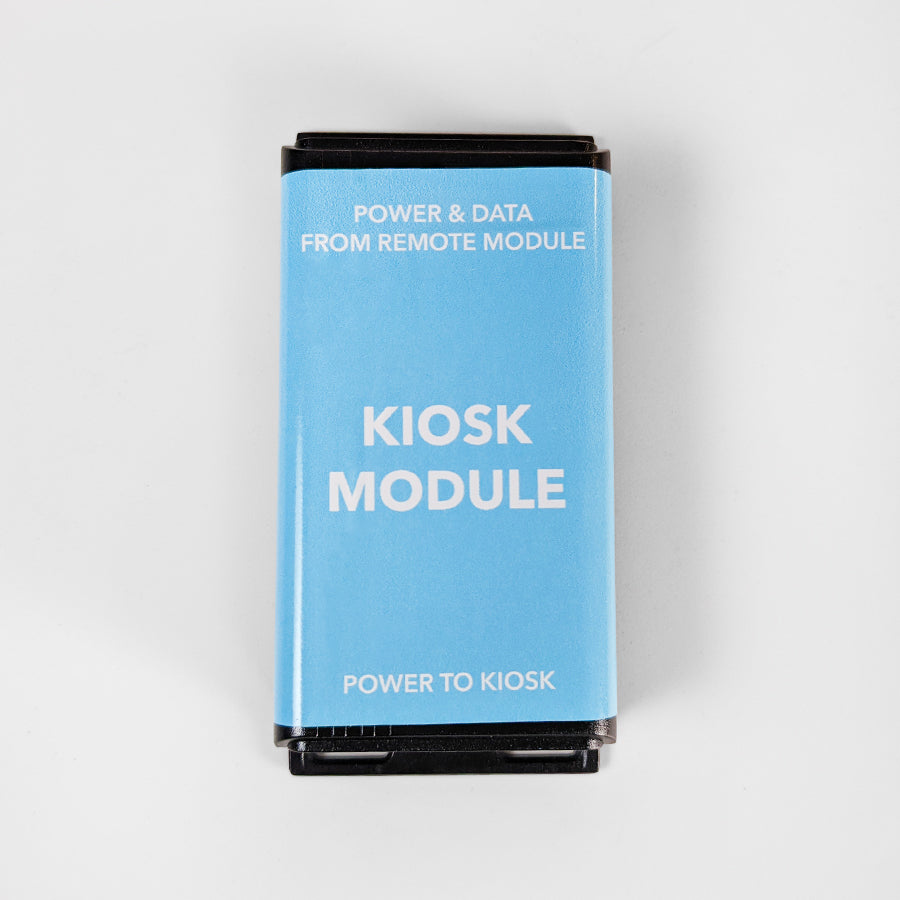

The Kiosk Module is secured inside the kiosk enclosure and connects to the tablet through a USB-C cable that comes with the tablet or can be purchased separately from Kiosk Group - see ‘Supported Tablets’ for more detail.

The modules are connected using up to 328 feet of standard ethernet cable (Cat5, Cat6, or Cat7 with RJ-45 connectors), allowing you to use existing cable infrastructure or buy the exact length needed. LEDs on both modules allow for easy visual verification of a successful connection.

Batteries and other charging accessories on our site are covered by a 1-year warranty. No warranty or liability of any kind for attached devices. External surge protection is required for any situation where lightning or ground loops may occur.

Supported Devices

USB-C

For tablets with a USB-C port that come with a male USB-C to male USB-C cable, the cable that comes with the device can be used to connect the Kiosk Module to the tablet.

Tablets with a USB-C port that supports power and optional data and come with a compatible USB-C cable include:

  • 11-inch iPad Pro (2021, 2020, 2018)
  • 12.9-inch iPad Pro (2021, 2020, 2018)
  • 10.9-inch iPad Air (2020)

Tablets with a USB-C port that supports power and optional data, but require the optional USB-C cable listed above include:

  • Microsoft Surface Go 3 (2021)
  • Microsoft Surface Go 2 (2020)
  • Microsoft Surface Go (2018)
  • Samsung Galaxy Tab S6 Lite (2020)
  • Samsung Galaxy Tab A 10.1" (2019)

Other tablets with a USB-C port compatible with up to a 25-watt power supply can be charged via this system, but may require additional testing to determine if they support concurrent data and/or need the optional USB-C cable listed above.

Lightning

All iPads with Lightning port support power and optional data using our Low Voltage PoE system.

For newer iPads with a Lightning port that come with a male USB-C to male Lightning cable, the cable that comes with the iPad can be used to connect the Kiosk Module to the tablet. These include:

  • 10.2-inch iPad (2021, 2020)

Prior to 2020, iPads with a Lightning port shipped with USB-A cables that are not compatible with our Low Voltage PoE and require the purchase of a Lightning to USB-C cable. These include:

  • 10.2-inch iPad (2019)
  • 10.5-inch iPad Air (2019)
  • 10.5-inch iPad Pro (2017)
  • 12.9-inch iPad Pro (2017, 2015)
  • 9.7-inch iPad (2018, 2017)
  • 9.7-inch iPad Pro (2016)
  • iPad Air 2 (2014)
  • iPad Air (2013)
