Countertop Tablet Kiosk

Designed to last

Created with durable materials and finishes, our Countertop kiosk enclosure is designed to stand up to public use for your full project lifecycle:

  • non-porous surfaces are easy to disinfect and sanitize
  • shatterproof thermoplastic tablet enclosure
  • heavy-duty steel body, protected by a durable powder-coat
  • scratch and fingerprint resistant
View Supported Tablets
A cutout in the tablet enclosure for easy home button access.
A Countertop sitting on a table with a newsletter sign-up screen display.

Tested for performance

Our team’s commitment to quality and user experience shows in every detail of our Countertop kiosk stand:

  • ADA compliant & easy to use for visitors of all heights
  • stable, non-tip design
  • radio-transparent tablet enclosure does not block WiFi or Bluetooth signals
  • supports landscape or portrait orientation for maximum flexibility
View Accessory Options

Secured & protected

Setting up a kiosk project is an investment not only of money, but of time. Our Countertop kiosk protects your tablet from loss and your project from interruption:

  • barrel lock with keyed access secures your tablet while simplifying access for staff

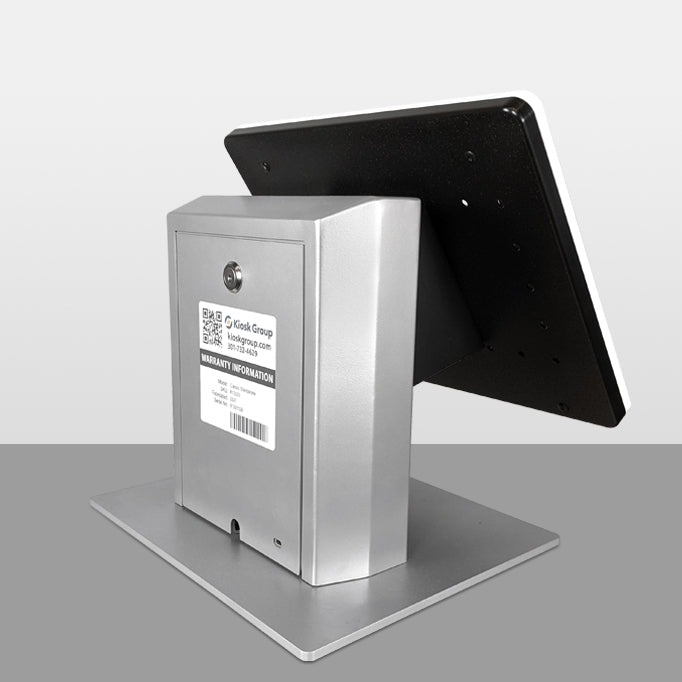

  • locking back panel allows access to cords and accessories stored within the body

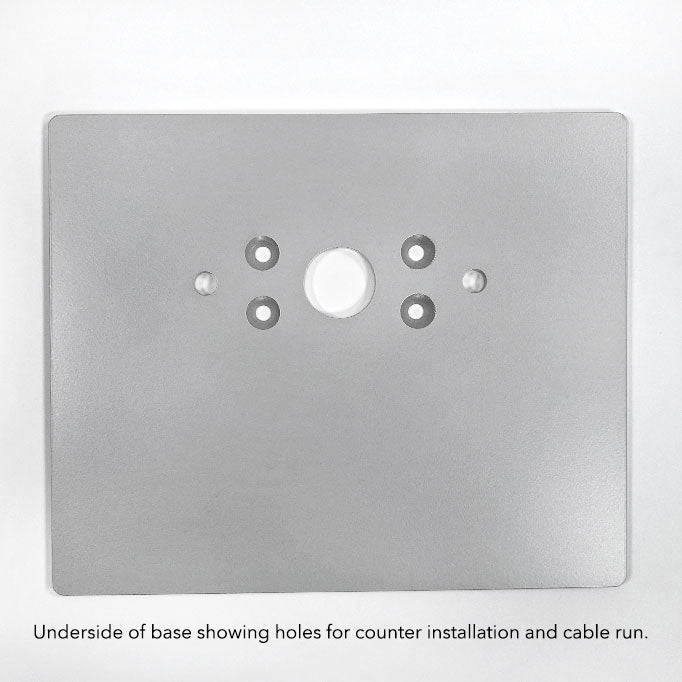

  • steel base can be bolted to the countertop with hidden lag-bolts for permanent installation if desired
  • optional audible alarm system and/or Kensington lock
View Specs
A closeup of the barrel lock that secures the tablet within the enclosure.
A Countertop with a Bezel graphic framing the tablet screen.

Engaging from a distance

If you do not quickly and effectively communicate your kiosk’s purpose, visitors will walk by without a second look. Our high-quality graphics and signage options increase traffic to your kiosk:

  • variable-size printing droplet technology delivers fine details, smooth gradients, and crisp colors
  • submit your own design or have our in-house designers work with you
  • printed in-house on professional, large-format UV and vinyl printers
  • quick turn-around with top-notch quality control
View Graphic Options

+ Specifications

Total dimensions of the assembled kiosk will depend on the tablet and any branding or accessories selected.

  • Kiosk base and pedestal: 10.5 H, 12 W, 10 D inches. Weight: 13.65 pounds.
  • Tablet enclosure (size will depend on the tablet selected): 10.5 - 12.875 L, 14 - 15.375 W, 1 - 1.125 D inches. Weight 3 - 3.85 pounds.

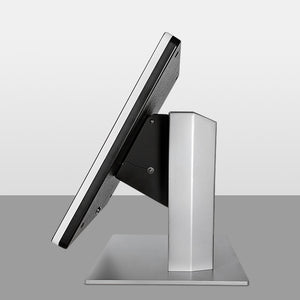

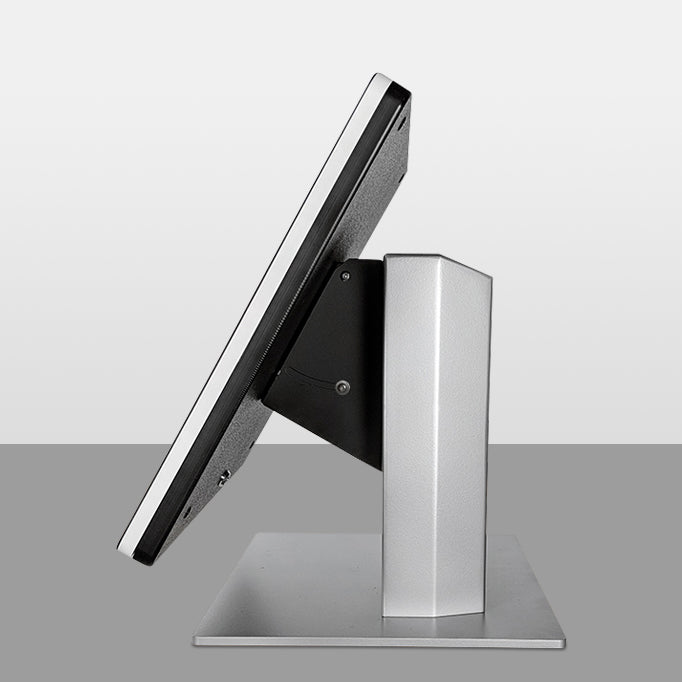

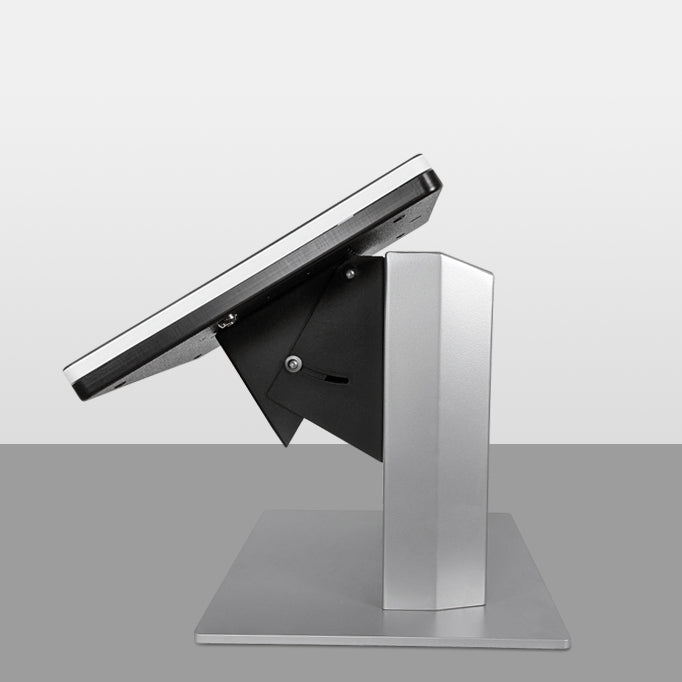

Adjustable bracket allows you to customize the angle of the tablet screen for your counter height.

For ADA compliance, maximum counter height can be determined by subtracting the highest touch point of screen for the configuration of your choice from 48”. If you need complete dimensions for a specific configuration, please contact us.

A secondary cable exit through the base of the kiosk allows for hidden AC power supply and cordless appearance.

Tablet is not included and must be bought separately.

+ Supported Tablet Models

Each of our head enclosures is made for a specific set of tablet dimensions, allowing the tablet to snap into the head for a secure fit. This kiosk enclosure is available for the following tablets:


Model numbers cited below are shown on the rear case of the iPad. If you need help identifying your iPad, click here.

Name Also Known As Model Numbers
10.9-inch iPad (2022) iPad (10th generation) A2696, A2757, A2777
10.9-inch iPad Air (2022) iPad Air (5th generation) A2588, A2589, or A2591
11-inch iPad Pro (2022) iPad Pro 11-inch (4th generation) A2759, A2435, A2761, or A2762
12.9-inch iPad Pro (2022) iPad Pro 12.9-inch (6th generation) A2436, A2764, A2437, or A2766
10.2-inch iPad (2021) iPad (9th generation) A2602, A2603, A2604, or A2605
11-inch iPad Pro (2021) iPad Pro 11-inch (3rd generation) A2377, A2459, A2301, or A2460
12.9-inch iPad Pro (2021) iPad Pro 12.9-inch (5th generation) A2378, A2461, A2379, or A2462
10.2-inch iPad (2020) iPad (8th generation) A2270, A2428, A2429, or A2430
10.9-inch iPad Air (2020) iPad Air (4th generation) A2316, A2324, A2325, or A2072
11-inch iPad Pro (2020) iPad Pro 11-inch (2nd generation) A2228, A2068, or A2230
12.9-inch iPad Pro (2020) iPad Pro 12.9-inch (4th generation) A2229, A2069, or A2232
10.2-inch iPad (2019) iPad (7th generation) A2197, A2200, or A2198
10.5-inch iPad Air (2019) iPad Air (3rd generation) A2152, A2123, or A2153
9.7-inch iPad (2018) iPad (6th generation) A1893 or A1954
11-inch iPad Pro (2018) iPad Pro 11-inch (1st generation) A1980, A2013, or A1934
12.9-inch iPad Pro (2018) iPad Pro 12.9-inch (3rd generation) A1876, A2014, or A1895
9.7-inch iPad (2017) iPad (5th generation) A1822 or A1823
10.5-inch iPad Pro (2017) - A1701 or A1709
12.9-inch iPad Pro (2017) iPad Pro 12.9-inch (2nd generation) A1670 or A1671
9.7-inch iPad Pro (2016) - A1673, A1674, or A1675
12.9-inch iPad Pro (2015) iPad Pro 12.9-inch (1st generation) A1584 or A1652
iPad Air 2 (2014) - A1566 or A1567
iPad Air (2013) - A1474, A1475, or A1476


If you need help identifying your Samsung tablet, click here.

Name Also Known As Model Numbers
Samsung Galaxy Tab S7 FE 12.4" (2021) - SM-T733
Samsung Galaxy Tab S7 (2020) - SM-T870
Samsung Galaxy Tab S6 Lite 10.4" (2020) - SM-P610NZAAXAR
Samsung Galaxy Tab A 10.1" without S-Pen (2019) - SM-T510, SM-T510NZKAXAR (WiFi); SM-T515, SM-T515NZKDKSA (3G, 4G/LTE & WiFi)
Samsung Galaxy Tab A 10.5" (2018) - SM-T590, SM-T590NZKAXAR (WiFi); SM-T595 (3G, 4G/LTE & WiFi)


If you need help identifying your Surface tablet, click here.

Name Also Known As Model Numbers
Microsoft Surface Go 3 (2021) - -
Microsoft Surface Pro 8 (2021) - -
Microsoft Surface Go 2 (2020) - 1901 (WiFi), unknown (4G/LTE)
Microsoft Surface Pro 7 (2019) - 1866 (WiFi), unknown (4G/LTE)
Microsoft Surface Go (2018) - 1824 (WiFi), unknown (4G/LTE)
Microsoft Surface Pro 6 (2018) - 1796 (WiFi, shared with Surface Pro (2017) below), unknown (4G/LTE)
Microsoft Surface Pro (2017) Microsoft Surface Pro 5 1796 (Wi-Fi, shared with Surface Pro 6 above), 1807 (4G/LTE)
Microsoft Surface Pro 4 (2015) - 1724 (Wi-Fi), unknown (4G/LTE)

Need an enclosure for a different tablet? We have frequently created custom enclosures for other tablets - please contact us to discuss your needs.

+ Button & Camera Access Options

Depending on the tablet chosen, precision-milled standard cutouts are available to allow access to:

  • the home button with pinhole and full access options available
  • the front-facing camera for photos and video

Custom cutouts to accommodate specific types of access, including power buttons, USB ports, and the rear-facing camera may also be available on request.

+ Graphics, Signage & Branding Options

All graphics and custom branding carry our 5-year warranty. Our Countertop model can be customized with the following options.

Bezel graphic and custom powdercoating must be applied prior to shipping.

+ Accessory Options

Extend the functionality of your tablet kiosk with the right accessory or peripheral. Our Countertop kiosk can be customized with the following options.

Don’t see what you are looking for? We also do custom integrations for a wide range of kiosk peripherals – please contact us to discuss your needs.

An external battery pack with multiple USB ports.

Battery Backup

$169, requires compatible tablet & mounting outside the enclosure

A barcode scanner attached underneath the tablet screen for easy scanning.

Datalogic Barcode Scanner

from $349, requires compatible tablet

A 3.5mm audio jack port attached to the tablet enclosure.

External Audio Jack Access

from $89, requires compatible tablet

A plastic ethernet adapter that lets you connect your iPad to hard-wired internet.

iPad Ethernet Adapter

from $158, requires compatible tablet

A pair of modules for providing power and data over ethernet to the tablet kiosk.

Low Voltage PoE for Power and/or Data

from $139, requires compatible tablet

An audio handset for personal audio access.

SoundStik Audio Handsets

from $499, requires compatible tablet

+ Large-Scale Projects & Volume Discounts

Kiosk Group is uniquely positioned to respond to the unique logistic challenges of large-scale projects. Our process and manufacturing capacity come together to ensure that your project is delivered on time and budget, whether you are ordering a single kiosk or several thousand.

To ensure we are providing the best possible value for every customer, we offer volume discounts starting at 10 or more kiosks. Please contact us so we can put together a formal quote and timeline based on your exact needs.

+ Shipping Details

This item ships unassembled in custom protective packaging (included in shipping costs) by the FedEx shipping method selected at checkout. If you would prefer to receive your kiosk fully assembled or are interested in installation services, please contact us directly.

Domestic orders over 150 pounds and all international orders require a custom shipping quote. If purchasing through the website in these instances, we will contact you after checkout to arrange payment of shipping charges separately.

For larger orders, we can also offer more economical shipping options, including pallet shipping and drop-shipping to specific locations. If you would like a custom quote that includes all shipping charges, please contact us directly.

Tracking information will be sent once the item has shipped. We ship all kiosks with adult signature required on delivery.

+ Downloads & Printables
