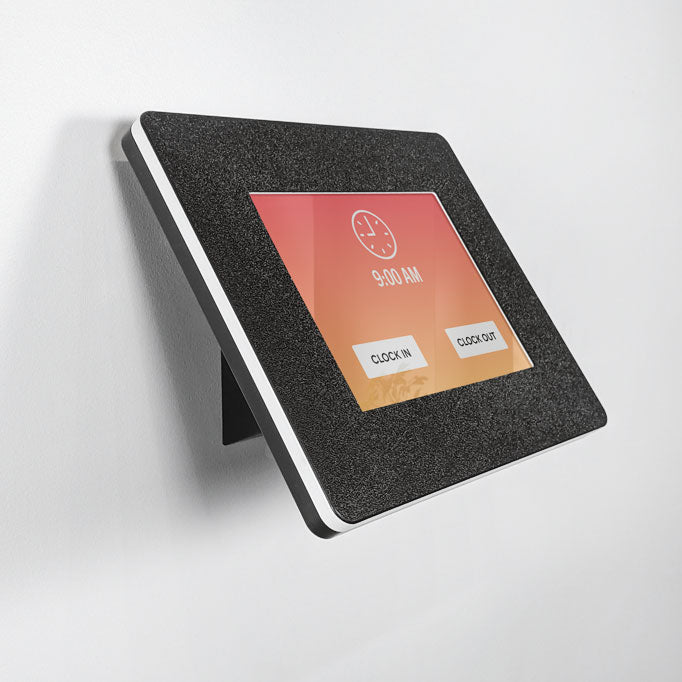

Angled Wall Mount Tablet Kiosk

Our Angled Tablet Wall Mount is a great choice for interactive projects with limited floor or counter space.

Available for a wide selection of current iPad, Windows, Android, and Chromebook tablets.

Request a Quote View Supported Tablets

Ready to go, day in and day out

Our Angled Wall Mount is a durable platform for self-service that is made with the most rugged materials of any kiosk enclosure on the market:

  • streamlined, low-profile design fits into the smallest spaces
  • scratch and fingerprint resistant
  • non-porous surfaces are easy to disinfect and sanitize
View Specs
A cutout in the tablet enclosure for easy home button access.
An Angled Wall Mount kiosk mounted outside of a conference room, displaying a room schedule.

Outperforming the competition

With a clear focus on accessible, user-centered design, the Angled Wall Mount kiosk enclosure delivers best-in-class performance:

  • ADA compliant & easy to use for visitors of all heights
  • radio-transparent tablet enclosure does not block WiFi or Bluetooth signals
  • supports landscape or portrait orientation for maximum flexibility
    (for 12 inch or larger tablets planned for portrait use, please discuss with our team prior to ordering)
View Accessory Options

Increase traffic with signage

Every new visitor represents a fresh set of eyes on your kiosk. Communicate the where and why of your project through signage and graphics that engage and attract visitors:

  • quick turn-around with top-notch quality control
  • variable-size printing droplet technology delivers fine details, smooth gradients, and crisp colors
  • printed in-house on professional, large-format UV and vinyl printers
  • submit your own design or have our in-house designers work with you
View Graphic Options
A bezel graphic surrounds the frame of the tablet kiosk screen.
A closeup of the barrel lock that secures the tablet within the enclosure.

Protect your investment

Our Angled Wall Mount tablet enclosure uses best-in-class solutions to secure your tablet and make sure your kiosk is available 24-7:

  • barrel lock with keyed access secures your tablet while simplifying access for staff
  • shatterproof thermoplastic tablet enclosure

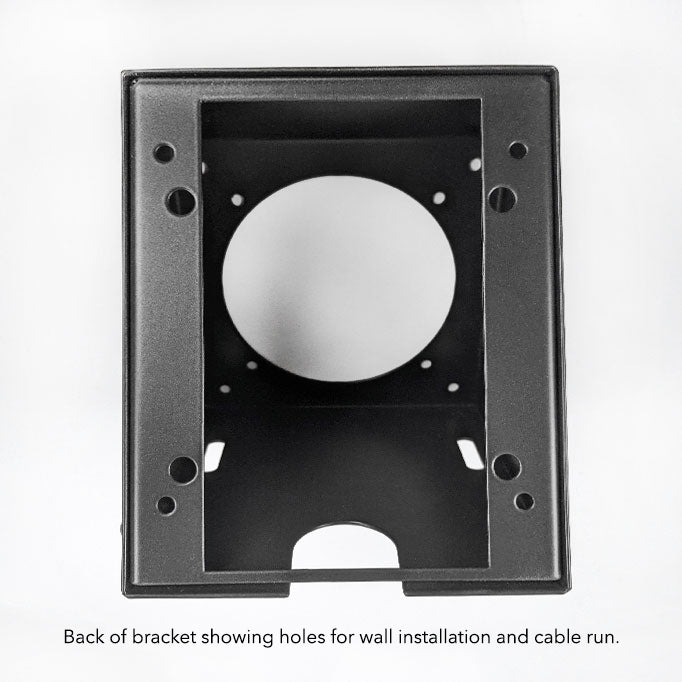

  • steel mounting plate can be attached securely to a variety of wall surfaces
  • optional audible alarm system

+ Specifications

Head enclosure is milled from durable ABS and HDPE thermoplastics. Bracket is made of steel and is powder-coated for long-lasting protection.

Total dimensions of this kiosk will depend on the tablet and any branding or accessories selected.

  • Kiosk mounting bracket - 5.5 H, 5 W, 5.375 D inches. Weight 1.65 lb.
  • Tablet enclosure (size will depend on the tablet selected): 10.5 - 12.875 L, 14 - 15.375 W, 1 - 1.125 D inches. Weight 3 - 3.85 pounds.

For ADA compliance, maximum mounting height can be determined by subtracting the highest touch point of screen for the configuration of your choice from 48”.

ADA regulations state that objects mounted between 27 and 80 inches from the floor cannot protrude into navigable areas more than 4 inches. This allows visitors using a cane to navigate to detect objects in their path.

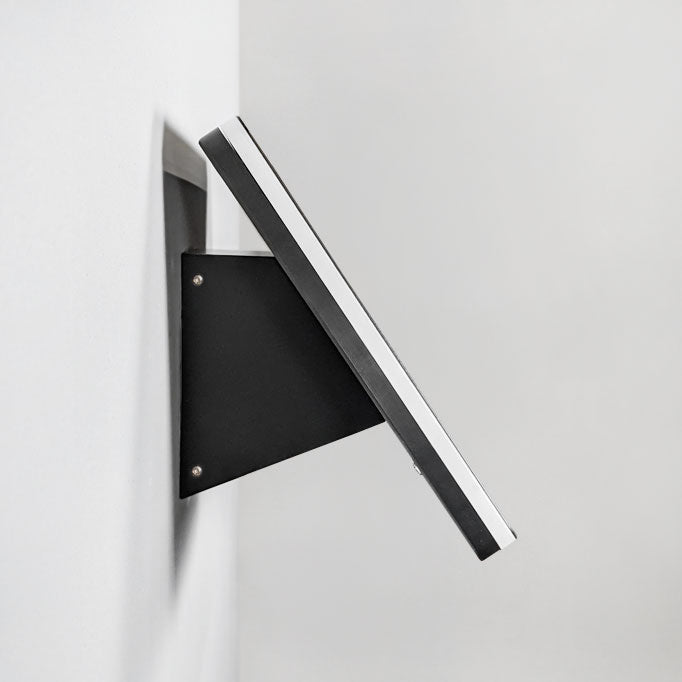

Since the Angled Wall Mount protrudes more than 4 inches, a shelf or object must be placed below the kiosk (either directly on the floor or lower than 27 inches from the floor).

Secondary cable exit through the rear of the mount allows for hidden AC power supply and cordless appearance.

Tablet is not included and must be purchased separately.

+ Supported Tablet Models

Each of our head enclosures is made for a specific set of tablet dimensions, allowing the tablet to snap into the head for a secure fit. This kiosk enclosure is available for the following tablets:

iPad

Model numbers cited below are shown on the rear case of the iPad. If you need help identifying your iPad, click here.

Name Year Released Port(s) Model Number(s)
13-inch iPad Air (M2) 2024 USB-C for power, data & audio A2898, A2899, or A2900
11-inch iPad Air (M2) 2024 USB-C for power, data & audio A2902, A2903, or A2904
13-inch iPad Pro (M4) 2024 USB-C for power, data & audio A2925, A2926, or A3007
11-inch iPad Pro (M4) 2024 USB-C for power, data & audio A2836, A2837, or A3006
10.9-inch iPad (10th gen) 2022 USB-C for power, data & audio A2696, A2757, A2777
12.9-inch iPad Pro (6th gen) 2022 USB-C for power, data & audio A2436, A2764, A2437, or A2766
11-inch iPad Pro (4th gen) 2022 USB-C for power, data & audio A2759, A2435, A2761, or A2762
10.9-inch iPad Air (5th gen) 2022 USB-C for power, data & audio A2588, A2589, or A2591
12.9-inch iPad Pro (5th gen) 2021 USB-C for power, data & audio A2378, A2461, A2379, or A2462
11-inch iPad Pro (3rd gen) 2021 USB-C for power, data & audio A2377, A2459, A2301, or A2460
10.2-inch iPad (9th gen) 2021 Lightning for power & data, 3.5mm jack for audio A2602, A2603, A2604, or A2605
8.3-inch iPad mini (6th gen) 2024 USB-C for power, data & audio A2567, A2568, or A2569
12.9-inch iPad Pro (4th gen) 2020 USB-C for power, data & audio A2229, A2069, or A2232
11-inch iPad Pro (2nd gen) 2020 USB-C for power, data & audio A2228, A2068, or A2230
10.2-inch iPad (8th gen) 2020 Lightning for power & data, 3.5mm jack for audio A2270, A2428, A2429, or A2430
10.9-inch iPad Air (4th gen) 2020 USB-C for power, data & audio A2316, A2324, A2325, or A2072
10.5-inch iPad Air (3rd gen) 2019 Lightning for power & data, 3.5mm jack for audio A2152, A2123, or A2153
10.2-inch iPad (7th gen) 2019 Lightning for power & data, 3.5mm jack for audio A2197, A2200, or A2198
12.9-inch iPad Pro (3rd gen) 2018 USB-C for power, data & audio A1876, A2014, or A1895
11-inch iPad Pro (1st gen) 2018 USB-C for power, data & audio A1980, A2013, or A1934
9.7-inch iPad (6th gen) 2018 Lightning for power & data, 3.5mm jack for audio A1893 or A1954
12.9-inch iPad Pro (2nd gen) 2017 Lightning for power & data, 3.5mm jack for audio A1670 or A1671
10.5-inch iPad Pro 2017 Lightning for power & data, 3.5mm jack for audio A1701 or A1709
9.7-inch iPad (5th gen) 2017 Lightning for power & data, 3.5mm jack for audio A1822 or A1823
9.7-inch iPad Pro 2016 Lightning for power & data, 3.5mm jack for audio A1673, A1674, or A1675
12.9-inch iPad Pro (1st gen) 2015 Lightning for power & data, 3.5mm jack for audio A1584 or A1652
iPad Air 2 2014 Lightning for power & data, 3.5mm jack for audio A1566 or A1567
iPad Air 2013 Lightning for power & data, 3.5mm jack for audio A1474, A1475, or A1476

Windows

If you need help identifying your Surface tablet, click here.

Name Year Released Approximate
Screen Size
Port(s) Model Number(s)
Microsoft Surface Pro 11th Edition 2024 13" Surface Connect port for power, USB-C x 2 for data & audio (unpublished)
Microsoft Surface Pro 10 2024 13" Surface Connect port for power, USB-C x 2 for data & audio (unpublished)
Dell Latitude 7350 Detachable 2024 13" USB-C x 2 for data and power, 3.5mm jack for audio (unpublished)
Microsoft Surface Go 4 2023 10.5" Surface Connect port for power, USB-C for data, 3.5mm jack for audio (unpublished)
Microsoft Surface Pro 9 2022 13" Surface Connect port for power, USB-C x 2 for data & audio (unpublished)
Microsoft Surface Pro 8 2021 13" Surface Connect port for power, USB-C x 2 for data, 3.5mm jack for audio (unpublished)
Microsoft Surface Go 3 2021 10.5" Surface Connect port for power, USB-C for data, 3.5mm jack for audio (unpublished)
Microsoft Surface Go 2 2020 10.5" Surface Connect port for power, USB-C for data, 3.5mm jack for audio 1901 (WiFi), (unpublished, 4G/LTE)
Microsoft Surface Pro 7 2019 12.3" Surface Connect port for power, USB-C & USB-A for data, 3.5mm jack for audio 1866 (WiFi), (unpublished, 4G/LTE)
Microsoft Surface Pro 6 2018 12.3" Surface Connect port for power, USB-A & Mini DisplayPort for data, 3.5mm jack for audio 1796 (WiFi), (unpublished, 4G/LTE)
Microsoft Surface Pro (2017) 2017 12.3" Surface Connect port for power, USB-A & Mini DisplayPort for data, 3.5mm jack for audio 1796 (Wi-Fi), 1807 (4G/LTE)
Microsoft Surface Pro 4 2015 12.3" Surface Connect port for power, USB-A & Mini DisplayPort for data, 3.5mm jack for audio 1724 (Wi-Fi), (unpublished, 4G/LTE)

Android

If you need help identifying your Samsung tablet, click here.

Name Year Released Approximate
Screen Size
Port(s) Model Number(s)
Samsung Galaxy Tab A9+ 2023 11" USB-C for power, data & audio SM-X210, SM-X215, SM-X216B
Samsung Galaxy Tab A8 2022 10.5" USB-C for power, data & audio SM-X200
Samsung Galaxy Tab S7 FE 2021 12.4" USB-C for power, data & audio SM-T733
Lenovo Tab K10 2021 10.3" USB-C for power & data, 3.5mm jack for audio ZA8S0000US
Samsung Galaxy Tab S7 2020 11" USB-C for power, data & audio SM-T870
Samsung Galaxy Tab S6 Lite (2020) 2020 10.4" USB-C for power & data, 3.5mm jack for audio SM-P610
Samsung Galaxy Tab A 10.1" (2019) 2019 10.1" USB-C for power & data, 3.5mm jack for audio SM-T510 (WiFi); SM-T515 (3G, 4G/LTE & WiFi)
Samsung Galaxy Tab A 10.5" (2018) 2018 10.5" USB-C for power & data, 3.5mm jack for audio SM-T590 (WiFi); SM-T595 (3G, 4G/LTE & WiFi)

ChromeOS

Name Year Released Approximate
Screen Size
Port(s) Model Number(s)
Acer Chromebook Enterprise Tab 510 2022 10.1" USB-C for power, data & audio D652N or D652NL

Need an enclosure for a different tablet? We have frequently created custom enclosures for other tablets - please contact us to discuss your needs.

+ Button & Camera Access Options

Depending on the tablet chosen, precision-milled standard cutouts are available to allow access to:

  • the home button with pinhole and full access options available
  • the front-facing camera for photos and video

Custom cutouts to accommodate specific types of access, including power buttons, USB ports, and the rear-facing camera may also be available on request.

+ Graphics, Signage & Branding Options

All graphics and custom branding carry our 5-year warranty. Our Angled Wall model can be customized with the following options.

Bezel graphic must be applied prior to shipping.

+ Accessory Options

Extend the functionality of your tablet kiosk with the right accessory or peripheral. Our Angled Wall Mount kiosk can be customized with the following options.

Don’t see what you are looking for? We also do custom integrations for a wide range of kiosk peripherals – please contact us to discuss your needs.

An external battery pack with multiple USB ports.

Battery Backup

requires compatible tablet & mounting outside the enclosure

A barcode scanner attached underneath the tablet screen for easy scanning.

Datalogic Barcode Scanner

requires compatible tablet

A 3.5mm audio jack port attached to the tablet enclosure.

External Audio Jack Access

requires compatible tablet

A plastic ethernet adapter that lets you connect your iPad to hard-wired internet.

iPad Ethernet Adapter

requires compatible tablet

A pair of modules for providing power and data over ethernet to the tablet kiosk.

Low Voltage PoE for Power and/or Data

requires compatible tablet

+ Large-Scale Projects & Volume Discounts

Kiosk Group is uniquely positioned to respond to the logistic challenges of large-scale projects. Our process and manufacturing capacity come together to ensure that your project is delivered on time and budget, whether you are ordering a single kiosk or several thousand.

To ensure we are providing the best possible value for every customer, we offer volume discounts starting at 10 or more kiosks. Please contact us so we can put together a formal quote and timeline based on your exact needs.

+ Shipping Details

This item ships unassembled in custom protective packaging (included in shipping costs) via FedEx. If you would prefer to receive your kiosk fully assembled or are interested in installation services, please include that with your quote request.

For larger orders, we can also offer more economical shipping options, including pallet shipping and drop-shipping to specific locations.

Tracking information will be sent once the item has shipped. We ship all kiosks with adult signature required on delivery.
