Roo Printer Kiosk for Star Micronics, Epson & Bixolon

Our Roo standalone tablet kiosk is designed for projects which require a thermal printer that triggers a partial cut where the label or receipt hangs until detached by the visitor.

Available for a wide selection of current iPad, Windows, Android, and Chromebook tablets.

Request a Quote View Supported Tablets

Designed for printing

Accessible, user-friendly design is a key piece of any successful kiosk project. Our freestanding printer kiosk stand hits the mark with:

  • heavy-duty steel body that protects your printer

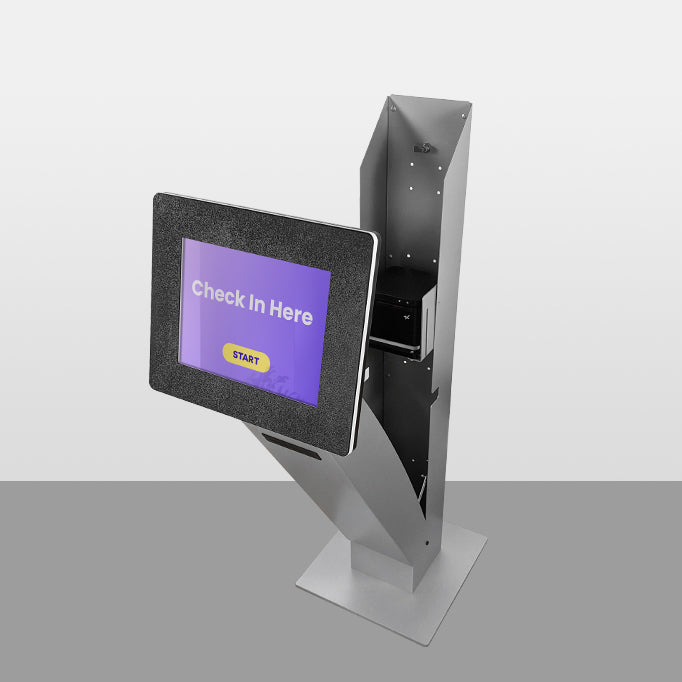

  • locking, fold-down front panel allows access for quick paper roll replacements
  • printed material passes cleanly through a slot on the front
  • ADA compliant & easy to use for visitors of all heights
View Supported Printers

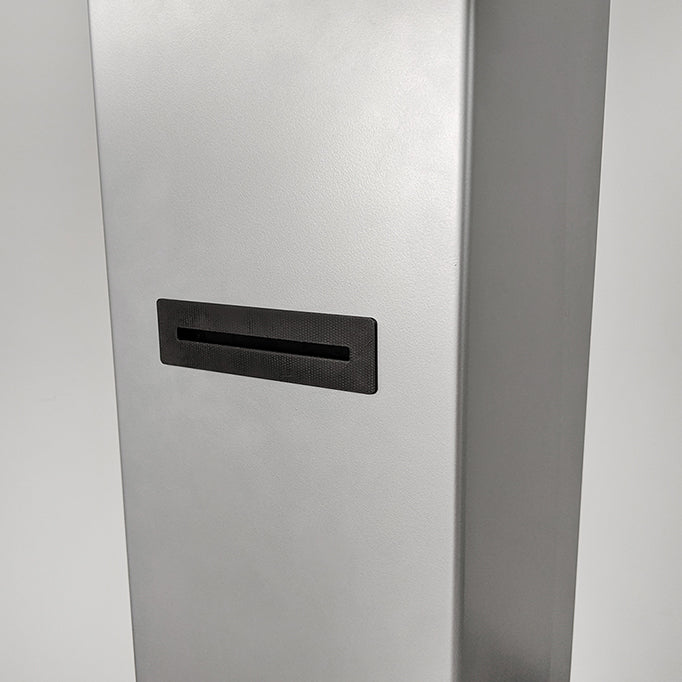

A printed receipt exits from a slot in the front of the kiosk.
A Bezel graphic frames the tablet screen and a vinyl graphic covers the front of the kiosk body.

Communicate clearly

Our signage solutions incorporate your graphics and text to welcome visitors, increasing the traffic to your kiosks immediately:

  • printed in-house on professional, large-format UV and vinyl printers
  • variable-size printing droplet technology delivers delicate details, smooth gradients, and crisp colors
  • submit your own design or have our in-house designers work with you
  • quick turn-around with top-notch quality control
View Graphic Options

User-tested, management-approved

Our Roo printer kiosk is crafted with durable materials and long-lasting finishes, designed to keep your kiosk project up and running on all cylinders:

  • stable, non-tip design
  • radio-transparent tablet enclosure does not block WiFi or Bluetooth signals
  • scratch and fingerprint resistant with non-porous surfaces that are easy to disinfect and sanitize
  • supports landscape or portrait orientation for maximum flexibility
View Accessory Options
A cutout in the tablet enclosure for easy home button access.
A closeup of the barrel lock that secures the tablet within the enclosure.

Secured and protected

Protecting your kiosk means more than just putting a lock on your tablet. A comprehensive approach to security can increase uptime and prevent data loss or other interruptions:

  • barrel lock with keyed access secures your tablet while simplifying access for staff
  • shatterproof thermoplastic tablet enclosure

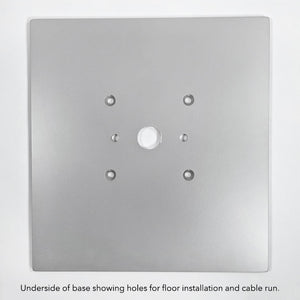

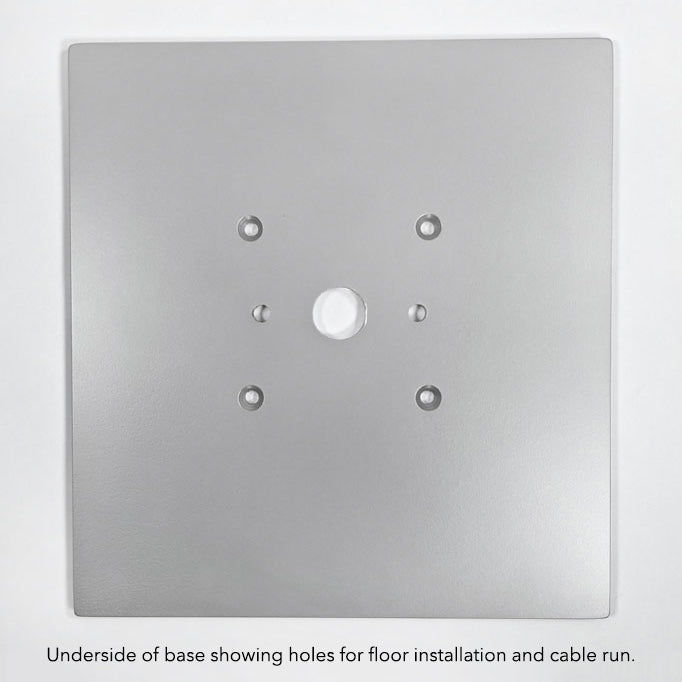

  • steel base can be bolted to the floor with hidden lag-bolts for permanent installation if desired
  • optional audible alarm system
View Specs

+ Specifications

Total dimensions of the assembled kiosk will depend on the tablet and any branding or accessories selected.

  • Kiosk base and pedestal: 47 H, 15 W, 16 D inches. Weight 56 pounds.
  • Tablet enclosure (size will depend on the tablet selected): 10.5 - 12.875 L, 14 - 15.375 W, 1 - 1.125 D inches. Weight 3 - 3.85 pounds.

The maximum reach depth is compliant with ADA guidelines. If you need complete dimensions for a specific configuration, please contact us.

Includes 6-outlet surge-protected power strip that mounts within the kiosk body to connect the printer and tablet to power supply. Secondary cable exit through the base of the kiosk allows for hidden power supply and cordless appearance if desired.

Printer and tablet are not included and must be purchased separately.

+ Supported Tablet Models

Each of our head enclosures is made for a specific set of tablet dimensions, allowing the tablet to snap into the head for a secure fit. This kiosk enclosure is available for the following tablets:

iPad

Model numbers cited below are shown on the rear case of the iPad. If you need help identifying your iPad, click here.

Name Year Released Port(s) Model Number(s)
12.9-inch iPad Pro (6th gen) 2022 USB-C for power, data & audio A2436, A2764, A2437, or A2766
11-inch iPad Pro (4th gen) 2022 USB-C for power, data & audio A2759, A2435, A2761, or A2762
10.9-inch iPad (10th gen) 2022 USB-C for power, data & audio A2696, A2757, A2777
10.9-inch iPad Air (5th gen) 2022 USB-C for power, data & audio A2588, A2589, or A2591
12.9-inch iPad Pro (5th gen) 2021 USB-C for power, data & audio A2378, A2461, A2379, or A2462
11-inch iPad Pro (3rd gen) 2021 USB-C for power, data & audio A2377, A2459, A2301, or A2460
10.2-inch iPad (9th gen) 2021 Lightning for power & data, 3.5mm jack for audio A2602, A2603, A2604, or A2605
12.9-inch iPad Pro (4th gen) 2020 USB-C for power, data & audio A2229, A2069, or A2232
11-inch iPad Pro (2nd gen) 2020 USB-C for power, data & audio A2228, A2068, or A2230
10.2-inch iPad (8th gen) 2020 Lightning for power & data, 3.5mm jack for audio A2270, A2428, A2429, or A2430
10.9-inch iPad Air (4th gen) 2020 USB-C for power, data & audio A2316, A2324, A2325, or A2072
10.5-inch iPad Air (3rd gen) 2019 Lightning for power & data, 3.5mm jack for audio A2152, A2123, or A2153
10.2-inch iPad (7th gen) 2019 Lightning for power & data, 3.5mm jack for audio A2197, A2200, or A2198
12.9-inch iPad Pro (3rd gen) 2018 USB-C for power, data & audio A1876, A2014, or A1895
11-inch iPad Pro (1st gen) 2018 USB-C for power, data & audio A1980, A2013, or A1934
9.7-inch iPad (6th gen) 2018 Lightning for power & data, 3.5mm jack for audio A1893 or A1954
12.9-inch iPad Pro (2nd gen) 2017 Lightning for power & data, 3.5mm jack for audio A1670 or A1671
10.5-inch iPad Pro 2017 Lightning for power & data, 3.5mm jack for audio A1701 or A1709
9.7-inch iPad (5th gen) 2017 Lightning for power & data, 3.5mm jack for audio A1822 or A1823
9.7-inch iPad Pro 2016 Lightning for power & data, 3.5mm jack for audio A1673, A1674, or A1675
12.9-inch iPad Pro (1st gen) 2015 Lightning for power & data, 3.5mm jack for audio A1584 or A1652
iPad Air 2 2014 Lightning for power & data, 3.5mm jack for audio A1566 or A1567
iPad Air 2013 Lightning for power & data, 3.5mm jack for audio A1474, A1475, or A1476

Windows

If you need help identifying your Surface tablet, click here.

Name Year Released Approximate
Screen Size
Port(s) Model Number(s)
Microsoft Surface Go 4 2023 10.5" Surface Connect port for power, USB-C for data, 3.5mm jack for audio (unpublished)
Microsoft Surface Pro 9 2022 13" Surface Connect port for power, USB-C x 2 for data & audio (unpublished)
Microsoft Surface Pro 8 2021 13" Surface Connect port for power, USB-C x 2 for data, 3.5mm jack for audio (unpublished)
Microsoft Surface Go 3 2021 10.5" Surface Connect port for power, USB-C for data, 3.5mm jack for audio (unpublished)
Microsoft Surface Go 2 2020 10.5" Surface Connect port for power, USB-C for data, 3.5mm jack for audio 1901 (WiFi), (unpublished, 4G/LTE)
Microsoft Surface Pro 7 2019 12.3" Surface Connect port for power, USB-C & USB-A for data, 3.5mm jack for audio 1866 (WiFi), (unpublished, 4G/LTE)
Microsoft Surface Pro 6 2018 12.3" Surface Connect port for power, USB-A & Mini DisplayPort for data, 3.5mm jack for audio 1796 (WiFi), (unpublished, 4G/LTE)
Microsoft Surface Pro (2017) 2017 12.3" Surface Connect port for power, USB-A & Mini DisplayPort for data, 3.5mm jack for audio 1796 (Wi-Fi), 1807 (4G/LTE)
Microsoft Surface Pro 4 2015 12.3" Surface Connect port for power, USB-A & Mini DisplayPort for data, 3.5mm jack for audio 1724 (Wi-Fi), (unpublished, 4G/LTE)

Android

If you need help identifying your Samsung tablet, click here.

Name Year Released Approximate
Screen Size
Port(s) Model Number(s)
Samsung Galaxy Tab A8 2022 10.5" USB-C for power, data & audio SM-X200
Samsung Galaxy Tab S7 FE 2021 12.4" USB-C for power, data & audio SM-T733
Samsung Galaxy Tab S7 2020 11" USB-C for power, data & audio SM-T870
Samsung Galaxy Tab S6 Lite (2020) 2020 10.4" USB-C for power & data, 3.5mm jack for audio SM-P610
Samsung Galaxy Tab A 10.1" (2019) 2019 10.1" USB-C for power & data, 3.5mm jack for audio SM-T510 (WiFi); SM-T515 (3G, 4G/LTE & WiFi)
Samsung Galaxy Tab A 10.5" (2018) 2018 10.5" USB-C for power & data, 3.5mm jack for audio SM-T590 (WiFi); SM-T595 (3G, 4G/LTE & WiFi)

ChromeOS

Name Year Released Approximate
Screen Size
Port(s) Model Number(s)
Acer Chromebook Enterprise Tab 510 2022 10.1" USB-C for power, data & audio D652N or D652NL

Need an enclosure for a different tablet? We have frequently created custom enclosures for other tablets - please contact us to discuss your needs.

+ Supported Printers

The Roo standalone currently supports:

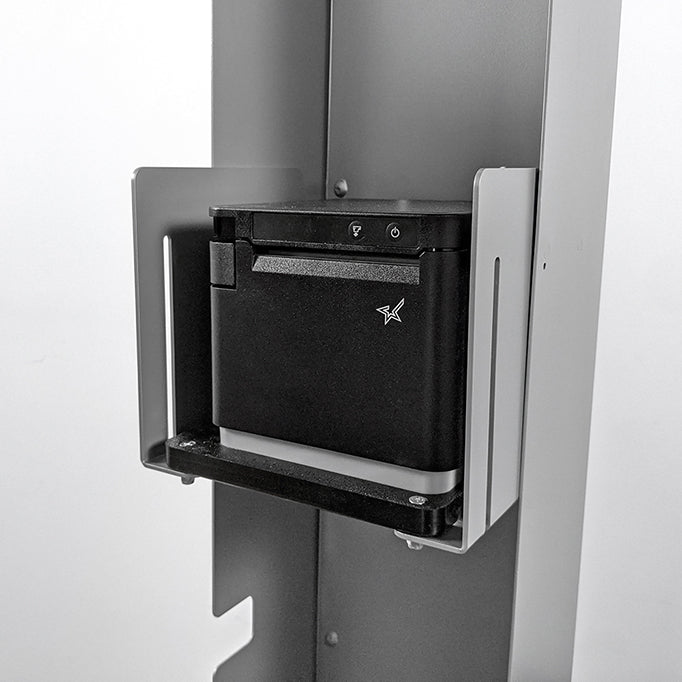

  • Star Micronics mC-Print3

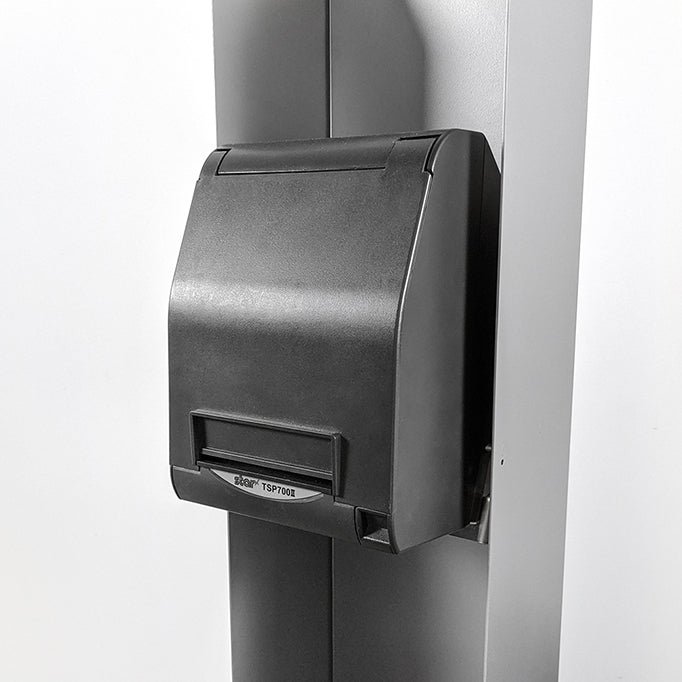

  • Star Micronics TSP700
  • Epson TM-M30ii
  • Bixolon SRP-S300

The Roo Standalone is designed for use with printers supporting a partial cut where the label or receipt hangs until detached by the visitor. Our Roo Plus Standalone is available for thermal printers that trigger a full cut and drop/eject the label or receipt after printing.

Printer is sold separately. Other printers may be supported on request.

+ Button & Camera Access Options

Depending on the tablet chosen, precision-milled standard cutouts are available to allow access to:

  • the home button with pinhole and full access options available
  • the front-facing camera for photos and video

Custom cutouts to accommodate specific types of access, including power buttons, USB ports, and the rear-facing camera may also be available on request.

+ Graphics, Signage & Branding Options

All graphics and custom branding carry our 5-year warranty. Our Roo model can be customized with the following options.

Graphics must be applied prior to shipping.

+ Accessory Options

Extend the functionality of your tablet kiosk with the right accessory or peripheral. Our Standalone kiosk can be customized with the following options.

Don’t see what you are looking for? We also do custom integrations for a wide range of kiosk peripherals – please contact us to discuss your needs.

+ Large-Scale Projects & Volume Discounts

Kiosk Group is uniquely positioned to respond to the logistic challenges of large-scale projects. Our process and manufacturing capacity come together to ensure that your project is delivered on time and budget, whether you are ordering a single kiosk or several thousand.

To ensure we are providing the best possible value for every customer, we offer volume discounts starting at 10 or more kiosks. Please contact us so we can put together a formal quote and timeline based on your exact needs.

+ Shipping Details

This item ships unassembled in custom protective packaging (included in shipping costs) via FedEx. If you would prefer to receive your kiosk fully assembled or are interested in installation services, please include that with your quote request.

For larger orders, we can also offer more economical shipping options, including pallet shipping and drop-shipping to specific locations.

Tracking information will be sent once the item has shipped. We ship all kiosks with adult signature required on delivery.

+ Downloads & Printables
